Partially prefabricated rain screen in ZFC (030)

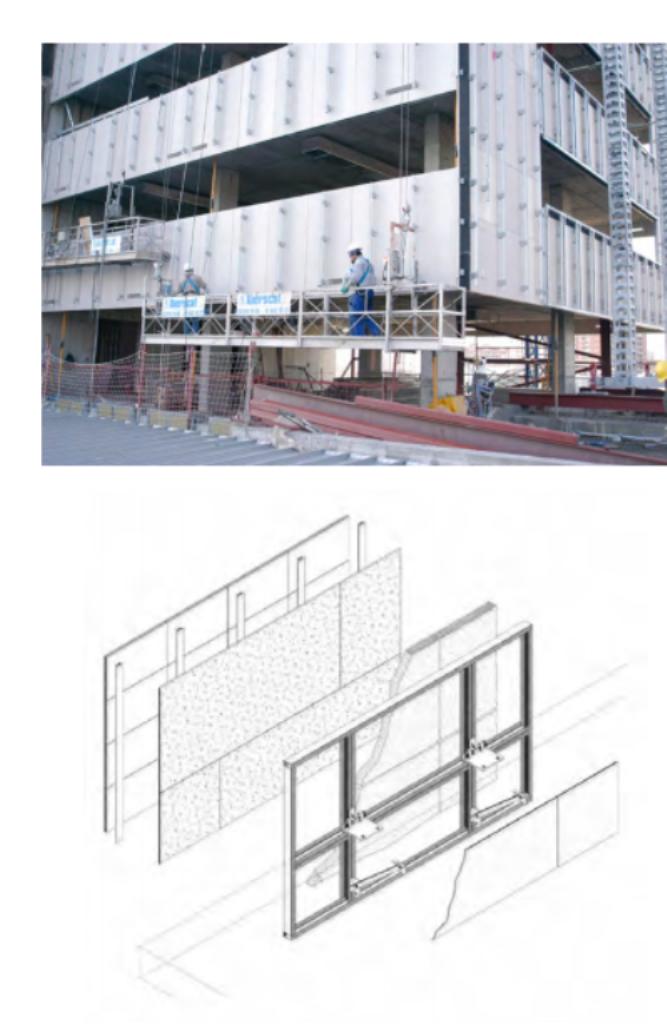

If the inner layer of the rain-screen façade at the Hotel AC was innovative, it was still more innovative the proposal for the neighboring office tower for the Zona Franca Consortium. Again the exterior image is a sober stone skin anchored over aluminum profiles; but on this occasion the inner layer made of boards over a steel framing was prefabricated, arriving to the site as panels. The total prefabrication of the ventilated façade is a difficult challenge mainly due to two issues: the air sealing of the inner layer; the perfect continuity and constant dimension of the joints, both vertical and horizontal.

Office Tower for CZF

Architect:
Location:
Consorcio Zona Franca CZF
Passeig del Taulat, 266-270
08019 Barcelona Barcelona
Spain
Year of construction:
2002
Solution:
Weight of the entire facade:
Period:
Finishing material:
Supporting element:
Companies:
Photographer:

Sistemas Masa

Authorship of the graphical documentation:

Sistemas Masa
