Façade glass-panel? (112)

Again, we can see a nearly completely glazed façade that faces northwest.

The purpose of this decision can be clearly understood when you get inside one of the classrooms behind the façade. Despite the shallowness of the plot, inside the classroom you feel that the space is wider. Aragon Street is the background added to the room. 66.1 AC/16/88.1 AC glass is designed to prevent excessive noise. Thermal loses are again the weak point.

Sun protection is achieved due to randomly coloured-glass vertical slats. These slats are fixed with randomly variable angles. This range in angles and colours give a brightness to the façade that has turned into a benchmark what used to be just one more chamfer in the Barcelona Eixample.

Regarding the taxonomy used to organise the content in this website, this façade is not easily classifiable. The main layer, the one that bears wind loads, is made of glass panes supported by frames. Is that a curtain wall, is it a panel façade? Check the answer in one of our studies Façade of windows



Edificio EADA

Architect:
Location:
Calle de Aragón, 202
08011 Barcelona Barcelona
Spain
Year of construction:
2019
Weight of the entire facade:
Period:
Finishing material:
Companies:
Photographer:

Ph 1-2, Bea Schulze

Ph 3-4, Jose Masterton

Ph 6-8, Cristina Pardal

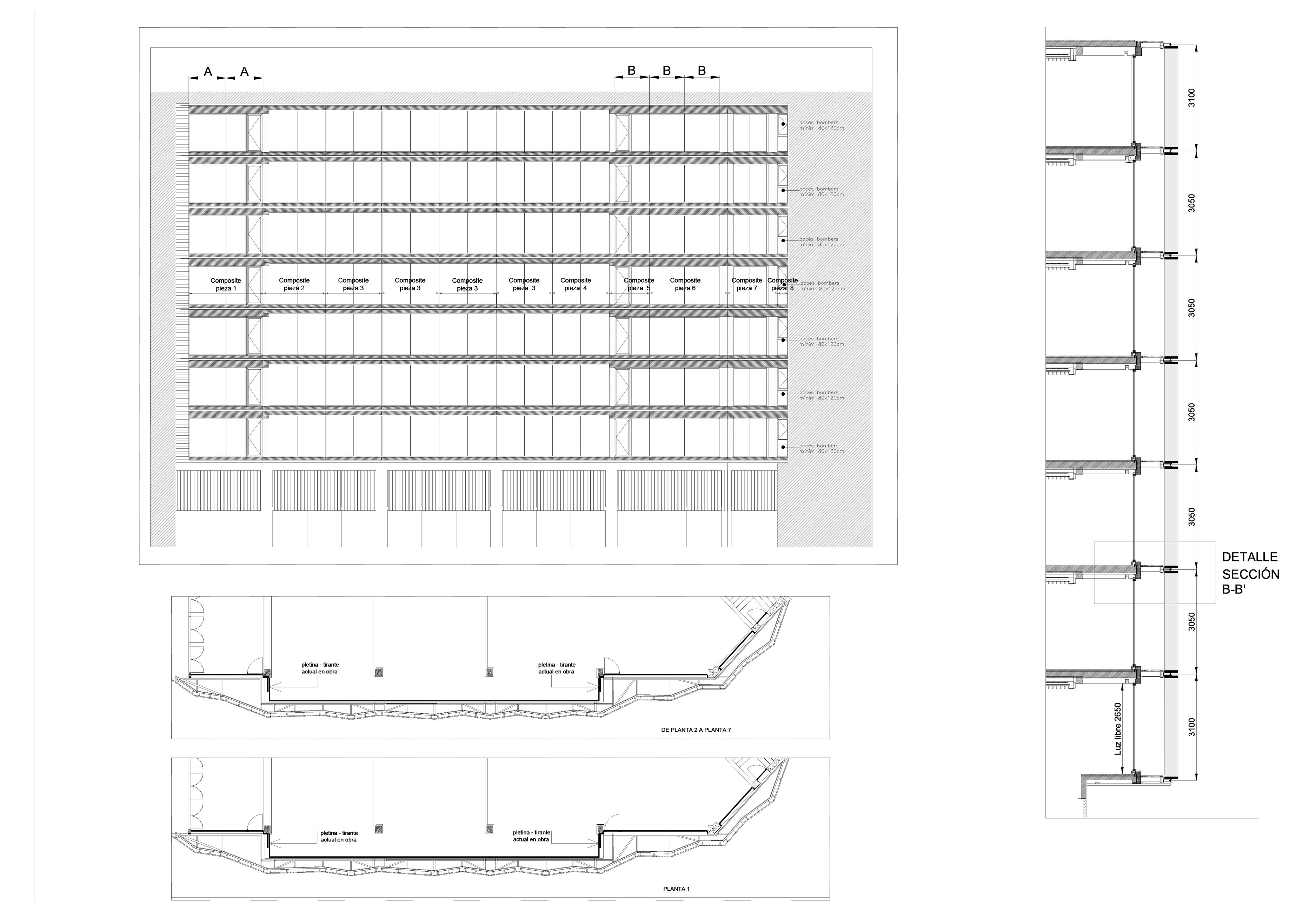

Authorship of the graphical documentation:

CDB Arquitectos

Observations:

Position in the taxonomic tool

Technical documentation:
